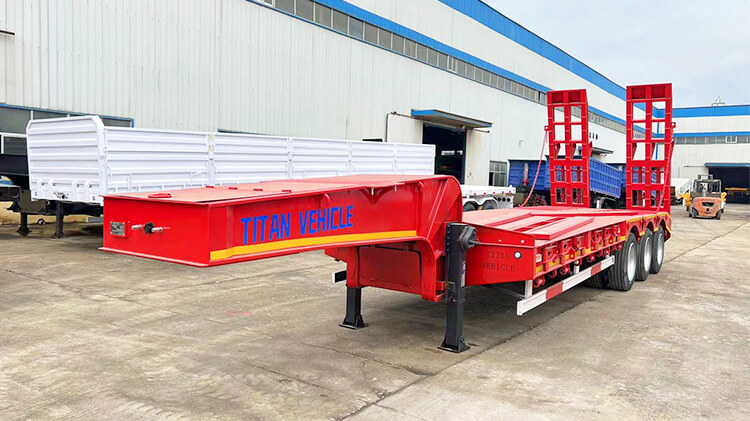

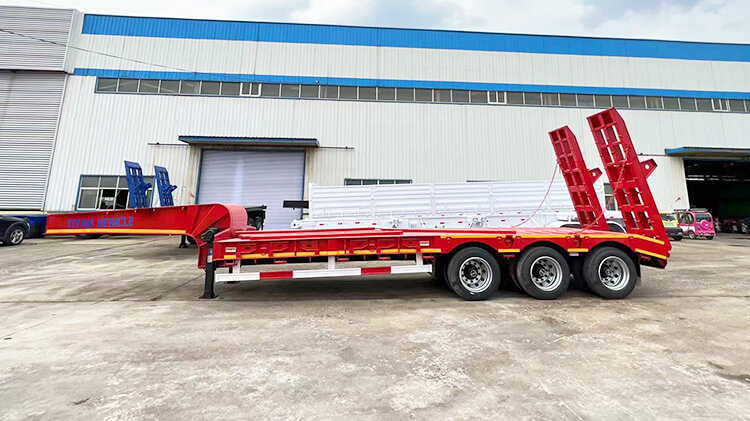

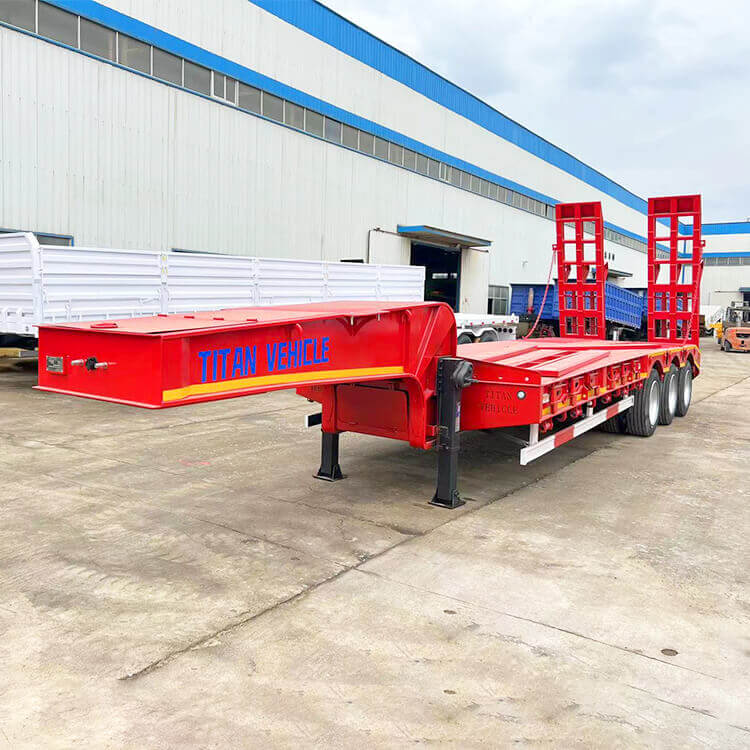

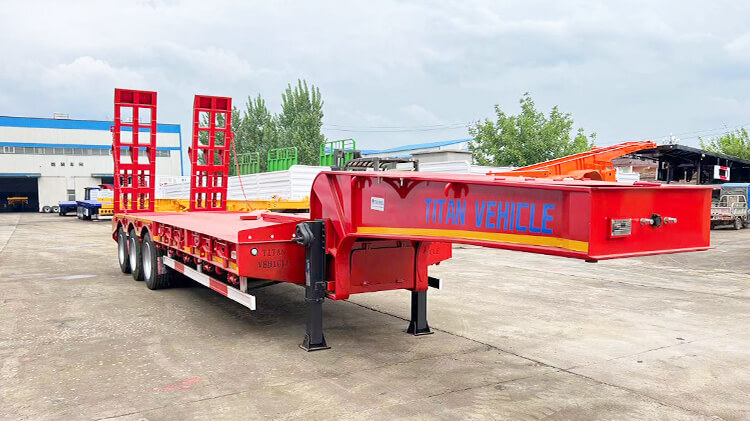

This tri axle lowbed loader has a load capacity of 80 tons and is welded with high-strength steel plates. It has many advantages such as high strength and high load-bearing capacity.
The body of the tri axle lowbed loader is made of high-quality steel, which has high strength and durability, can withstand long-term transportation tasks, and reduces maintenance costs and replacement frequency.
The tri axle lowbed loader for sale has the characteristics of strong flexibility and wide adaptability, and can adapt to different transportation needs, such as heavy machinery, large equipment, construction materials, etc., providing more diversified options for logistics transportation.

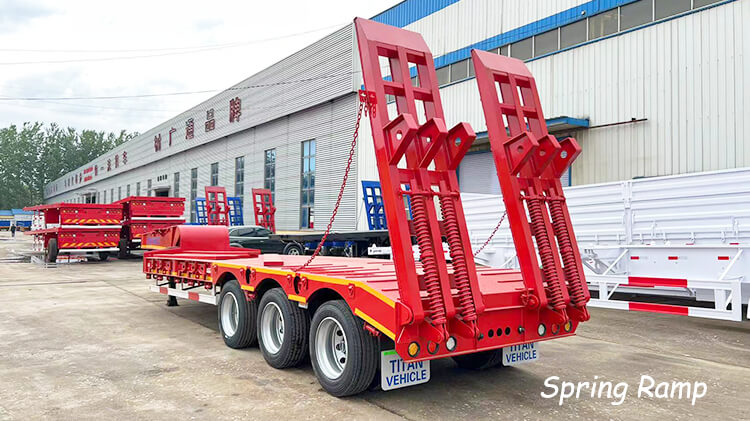

Tri axle lowb loader for sale is equipped with high-quality spring ramp, the spring ladder is easy to operate, and one person can easily control the ramp up and down.

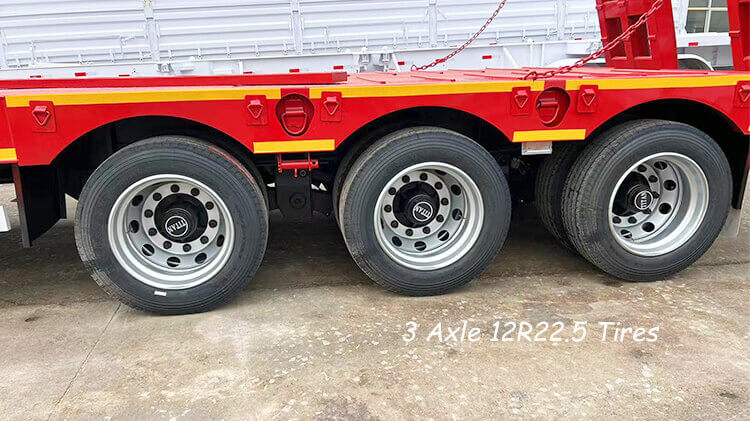

The tires of the tri axle lowbed loader come from factories that have cooperated with them for many years. There are very few after-sales problems and the quality is guaranteed. Different types of tires can be configured according to the height of the cargo platform.
Model: tri axle 80ton lowbed loader for sale in Dominican
Dimension: 13000*3000*1700mm(depends on final design)
Capacity: ≤80ton
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Color: Optional
Landing Gear: Standard 28 ton or JOST
Kingpin: 2.0 inch or 3.5 inch JOST
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
If you are interested in this tri axle 80ton lowbed loader for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
