The body of the 4 axle extendable semi low bed trailer is welded with high-strength steel plates, featuring high strength and durability. The entire body has excellent load-carrying capacity.
The 4 axle extendable semi low bed trailer has excellent load capacity and can carry a large amount of heavy machinery equipment or other goods, and its low flat design makes loading and unloading of goods more convenient and fast, and improves logistics efficiency.
The lower body height of the 4 axle extendable semi low bed trailer makes the transportation of goods more stable and safe, and effectively guarantees the safety of goods transportation.
4 axle 100ton extendable semi low bed trailer for sale adopts a high-quality mechanical suspension system, which makes the body better adaptable to the road surface, can maintain stability in complex road conditions, and improves driving comfort and safety.

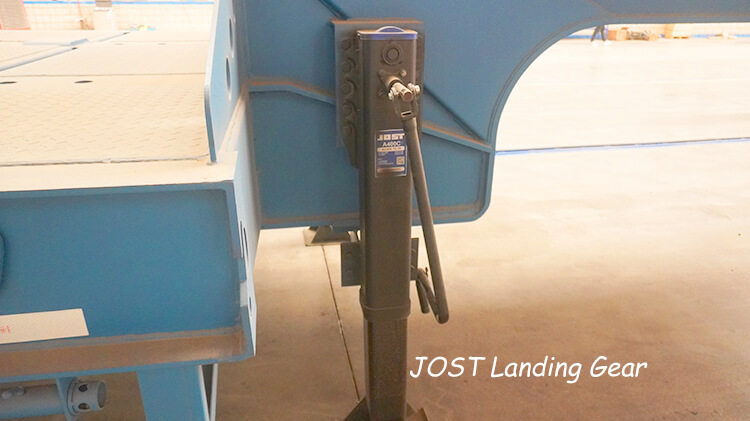

The landing gear of the 4 axle low bed trailer can be equipped with the internationally renowned JOST brand, which has guaranteed quality and longer service life.

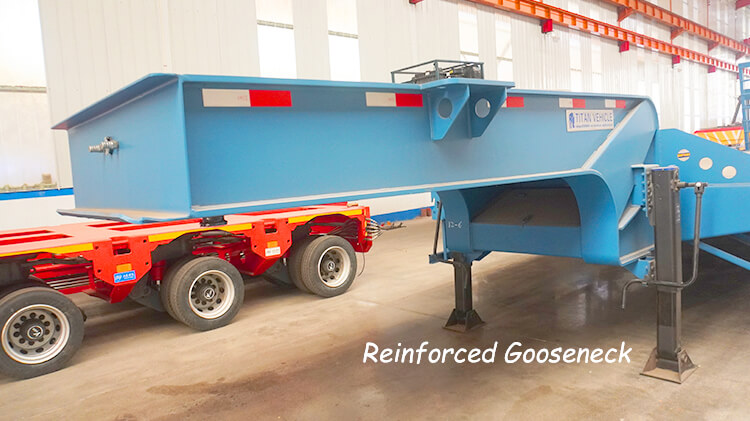

The gooseneck of the 4 axle low bed trailer in Dominican has multiple reinforcements, and the lower part of the gooseneck is reinforced with double-layer steel plates. The gooseneck has a certain angle of downward slope to prevent overturning when loading and unloading large loading and unloading equipment.
The extendable semi low bed trailer for sale can be equipped with various types of rope tensioners to deal with the transportation of different kinds of goods. Make the goods more solid during transportation.

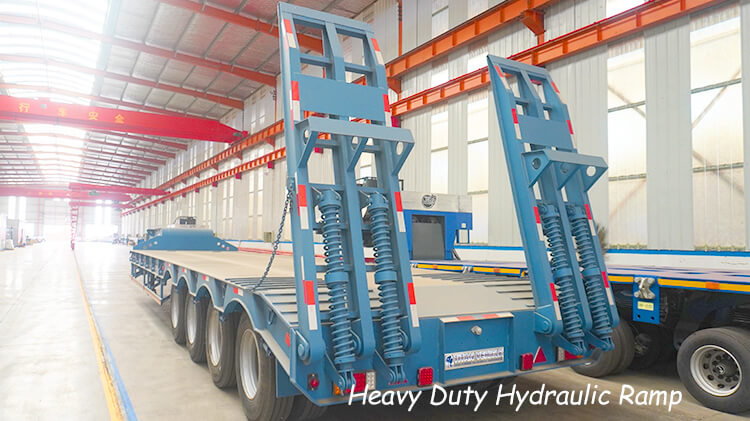

Model: 4 axle semi lowbed trailer with spring ramp for sale in Dominican
Dimension: 13000*3000*1700mm(depends on final design)
Capacity: ≤100ton
Axles: 4 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Color: Optional
Landing Gear: Standard 28 ton or JOST
Kingpin: 2.0 inch or 3.5 inch JOST

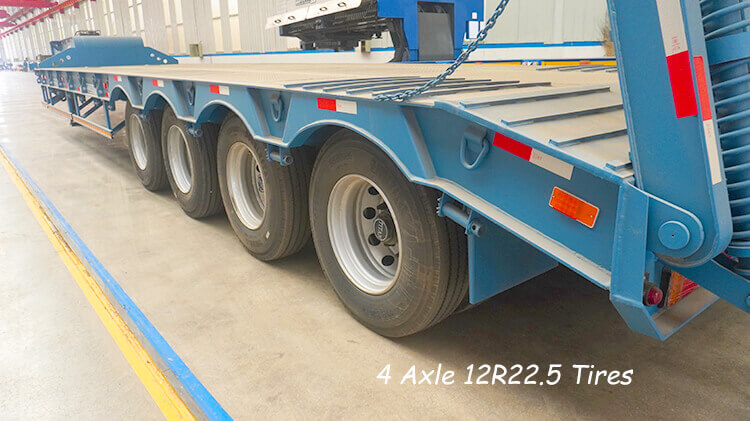

Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 10pcs,16mm thick, 900mm wide
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm

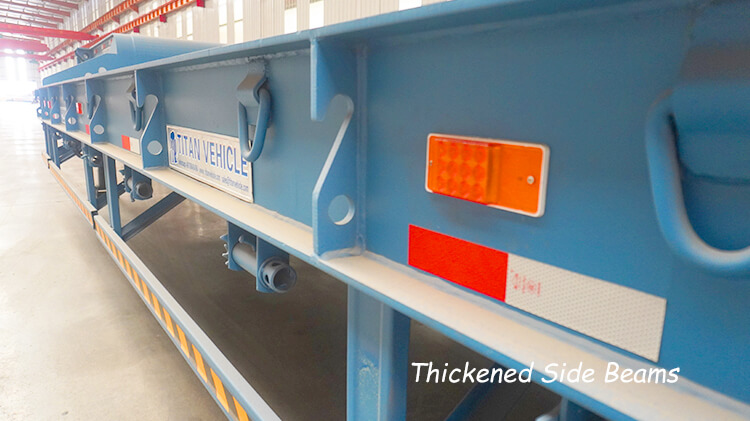

Side Beam: 300mm*140mm H-type(8/6/10mm)
If you are interested in this 4 axle extendable semi low bed trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
