The flat plate of the 3 axle 60ton lowbed trailer is made of high-strength steel, which has excellent load-bearing performance while ensuring light weight. The length of the flat plate can be adjusted according to actual needs to meet various transportation needs.
The body of lowbed trailer is made of high-quality steel, featuring high strength and durability, which can withstand long-term transportation tasks and have a long service life.
The 3 axle 60ton low bed trailer features strong flexibility and wide adaptability, and it can adapt to different transportation demands, such as heavy machinery, large equipment and building materials.

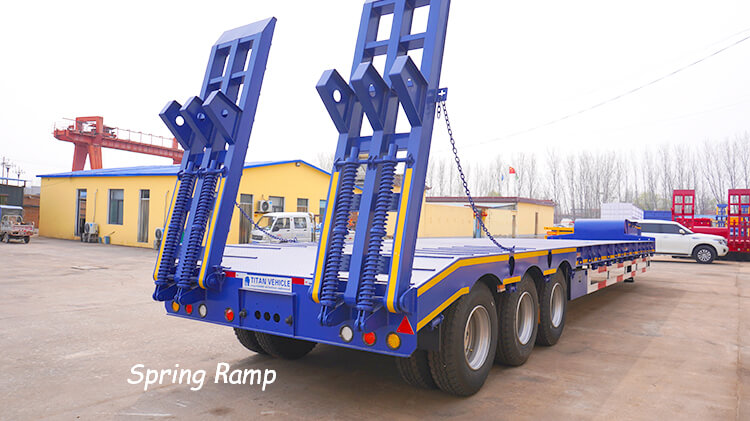

The 3 axle low bed trailer for sale is equipped with high-quality spring ramp, which is easy to operate and can be easily controlled by one person.

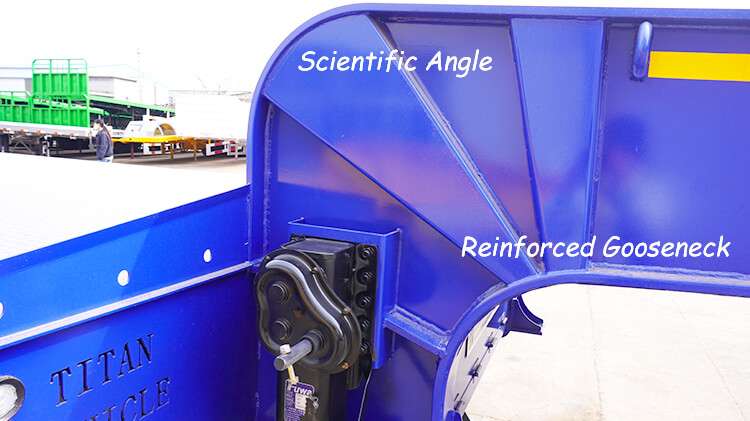

The 3 axle low bed trailer in Dominican is equipped with multiple reinforcement at the gooseneck. The gooseneck is reinforced by double steel plates below it. The gooseneck is inclined downward at a certain Angle to prevent flipping during loading and unloading of large receiving and unloading equipment.
3 axle low bed trailer Equipped with several types of tightener can handle the transportation of different kinds of goods. To make the goods more secure in transit.
Model: 3 axle lowbed trailer for sale in Dominican
Dimension: 13000*3000*1700mm(depends on final design)
Capacity: ≤60ton
Axles: 3 axles, 13T axle ( with 16T braking pads )
Material: HG60 high strength steel（Q460C）
Color: Optional
Landing Gear: Standard 28 ton or JOST
Kingpin: 2.0 inch or 3.5 inch JOST
Tire: 12R22.5
Rim: 9.00-22.5
Suspension: Mechanical suspension (Air suspension optional)
Platform: 5mm-thick checkered HSS plate
Main Beam: Q460C steel, Upper plate:20mm, Middle plate:14mm, Bottom plate:20mm,, Height: 500mm
Side Beam: 300mm*140mm H-type(8/6/10mm)
If you are interested in this 3 axle 60ton lowbed trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
