The detachable gooseneck trailer's gooseneck and cargo platform are designed separately, so that the platform part can be unloaded and loaded many times, reducing the wear and tear of the body part. At the same time, the separation design of the gooseneck greatly increases the stability of the vehicle and equipment when loading, thereby improving the safety of transportation.
The detachable gooseneck trailer for sale adopts the detachable design of the gooseneck and the platform. Vehicles and mechanical equipment are loaded onto the platform from the gooseneck, which increases the stability of the trailer and the vehicle to be transported.

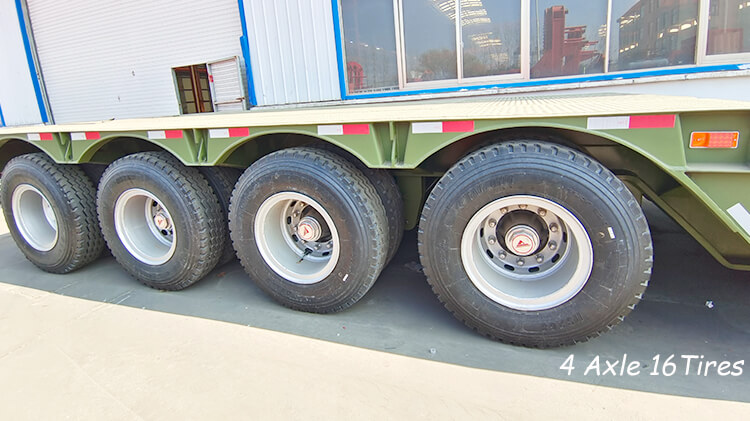

The tires of the detachable gooseneck trailer in Dominican are mostly double tires. This design can make the split gooseneck semi-trailer have a very strong heavy load capacity, which can meet the transportation needs of various goods and drive more stably.
The whole vehicle of the detachable gooseneck trailer from Titan is very firm, the suspension and chassis structure are very stable, and the axle with a 16-ton braking system is used. It has many years of rich production experience for the axle, with better bearing capacity and better braking effect , so that the balance of driving is also very good.

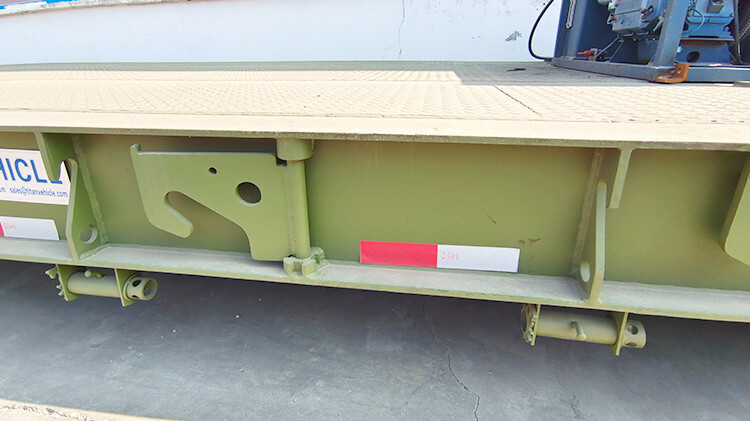

The gooseneck of the 4 axle detachable gooseneck trailer is connected to the platform by buckles, which has a simple structure and can be quickly loaded and unloaded during transportation, saving time and labor costs and improving transportation efficiency.
In addition, the detachable gooseneck trailer for sale near me also has great advantages in terms of safety. Its snap connection design between the gooseneck and the platform is more stable than the traditional hook-up semi-trailer, avoiding accidental decoupling accidents during transportation. Effectively ensure driving safety.
Model: 4 axle 100ton detachable gooseneck trailer for sale in Dominican
Dimension: 16500mm x 3000mm x 2500mm（depends on final design）
Loading capacity(T): 100T
Axle: 4 axles, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

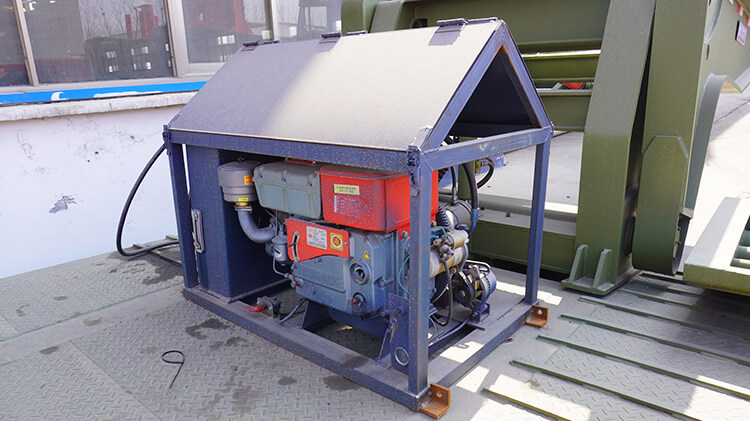

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Valve: WABCO valve
Voltage: 24V
