4 axle lowboy is suitable for transporting various goods, such as large machinery and equipment, steel, etc., and can be customized according to different transportation needs such as body size, number of axles and other parameters to meet different needs of customers.

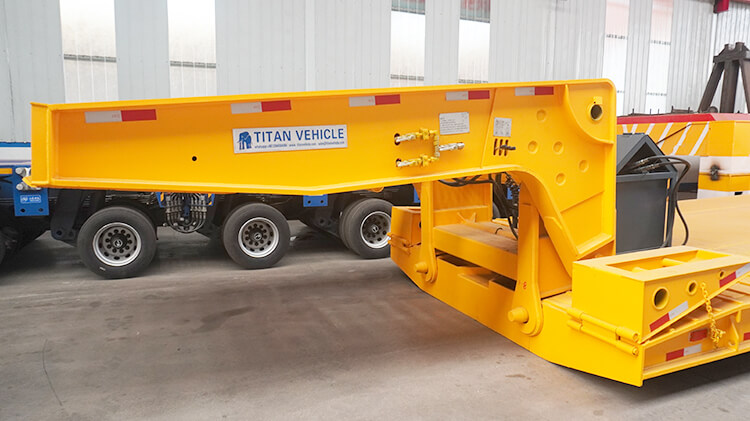

The front of the 4 axle lowboy for sale is connected to the loading platform by a gooseneck. This structure makes the vehicle more stable and safer during driving. It can adapt to various road environments and terrains, and has wide adaptability.
4 axle 100ton lowboy for sale in Dominican has higher load capacity. Its load-bearing capacity can reach 100 tons. Since the connection between the head and the loading platform adopts the gooseneck design, the force between the head and the loading platform is more uniform, and the gooseneck can share part of the load, thereby improving The carrying capacity of the entire semi-trailer.
Compared with the traditional semi-trailer structure, the 100ton lowboy for sale can be more compactly connected to the front of the car and the loading platform. The overall loading capacity is higher, the transportation flexibility is stronger, and the stability during driving will also be greatly improved.
The 4 axle 100ton lowboy equipment trailer from Titan itself is welded with high-strength steel, which has sufficient bearing capacity, and because of its low center of gravity, the corresponding chassis height is not high, so that it can complete various tasks with a large tonnage (60-120 tons). transport tasks of heavy machinery.

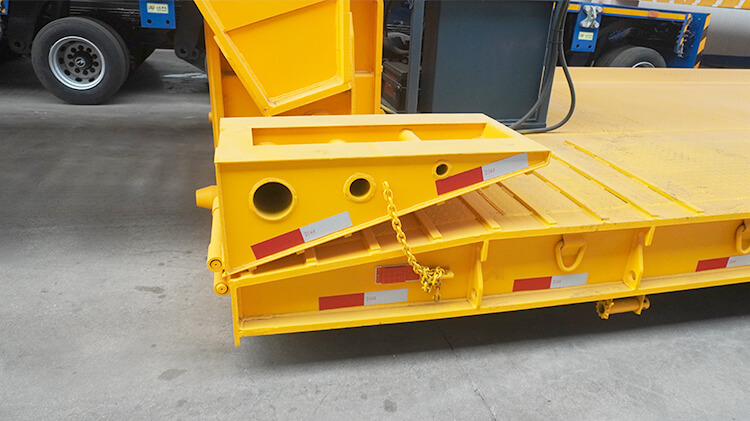

4 Axle lowboy equipment trailer adopts a detachable design of gooseneck and platform, and vehicles and mechanical equipment are loaded onto the platform from the gooseneck, which increases the stability of the trailer and the vehicle to be transported. The gooseneck and the platform are connected by buckles, the structure is simple, and the loading and unloading operations can be performed quickly during transportation, which improves the transportation efficiency.
Model: 4 axle 100ton lowboy trailer for sale in Dominican
Dimension: 16500mm x 3000mm x 2500mm（depends on final design）
Loading capacity(T): 100T
Axle: 4 axles, 13T/16T, FUWA / BPW / TITAN Brand
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

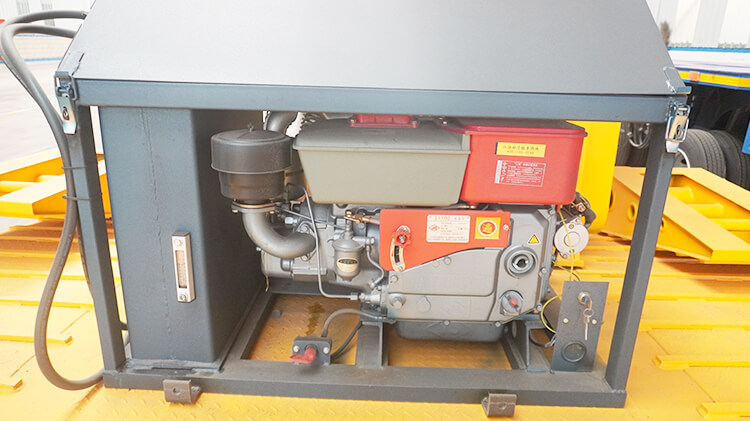

Hydraulic cylinder: 12KW diesel engine with hydraulic station
If you are interested in this 4 axle 100ton Lowboy Trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
