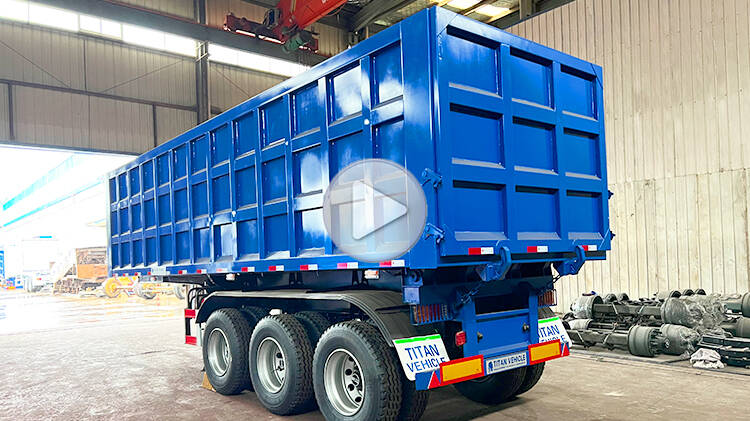

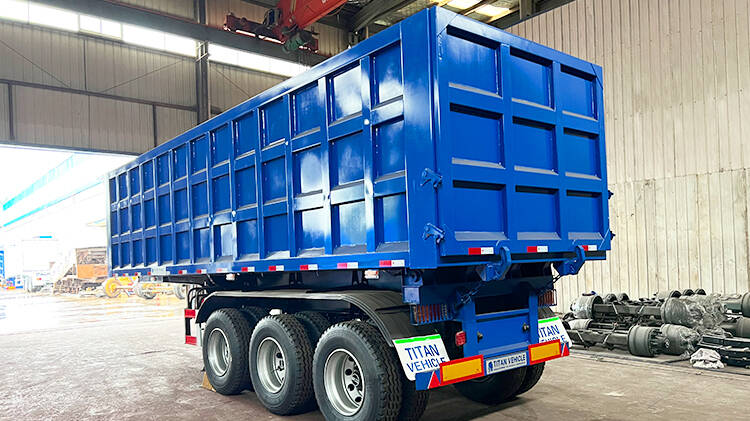

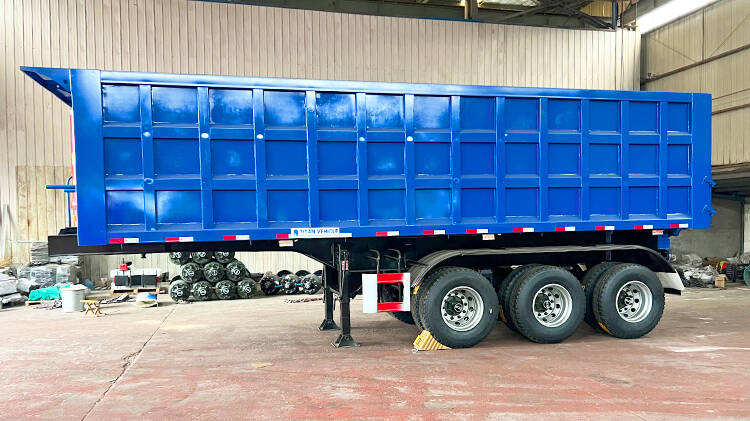

Improve transport efficiency with this 3 axle dump semi trailer. It adopts the way of turning back and unloading, which can effectively load and unload bulk and scattered goods, and is suitable for the transportation of bulk and scattered goods such as coal, ore, earthwork, and building materials. This 3 axle semi truck dump trailer can unload faster and more efficiently than conventional loading and unloading methods.
The frame and longitudinal beams of this 3 axle dump semi trailer are welded with high-quality manganese plates, and the cargo box has two types: U-shaped and rectangular. It has high strength, strong lifting force, good rigidity and toughness, strong bearing capacity, and is not easy to deform.
Since this 3 axle dump semi trailer adopts the rear-turning self-unloading method, the requirements for the unloading site are small, and the unloading site only needs to be flat and unobstructed. In addition to the above requirements, the side-turning semi-trailer also needs a large and wide unloading site. So the semi dump trailer can unload the cargo more smoothly.
This 3 axle dump semi trailer has high safety during the unloading process. It adopts high-quality hydraulic devices, and the chassis structure is stable, which can avoid the safety problems caused by the body rollback and reduce the risk of rollover when the semi-trailer is unloaded.
The 3 axle semi dump trailers can realize mechanized loading and unloading, greatly reducing labor costs. The entire self-unloading process can be completed by only one person, so a lot of human resources can be saved. And this 3 axle semi dump trailers has wide applicability, it can be widely used in engineering construction, mines, ports and other fields, and can transport different types of goods.
Model: 3 axle semi dump trailer for sale in Dominican
Inside dimension: 11280mmx2495mm x3970mm ( depends on final design)
Total volume(m³): 30-40m³ or less than 100tons

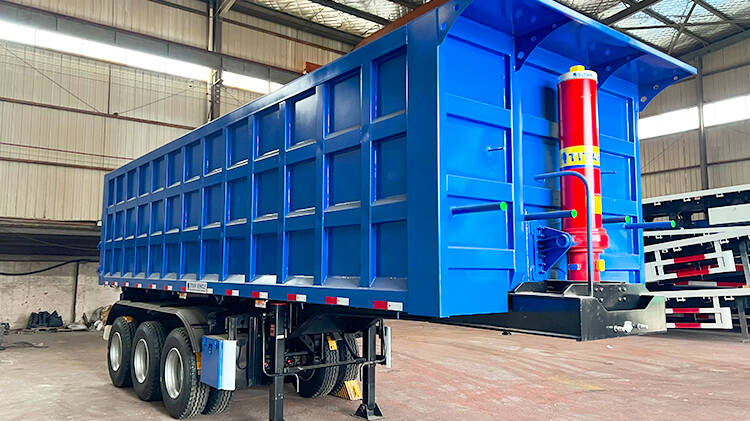

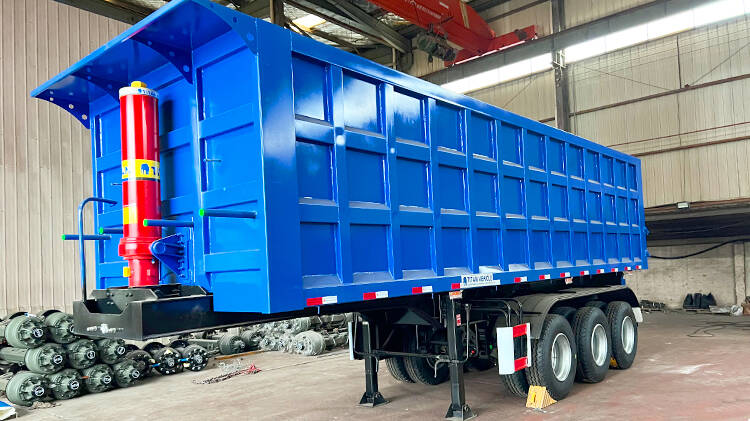

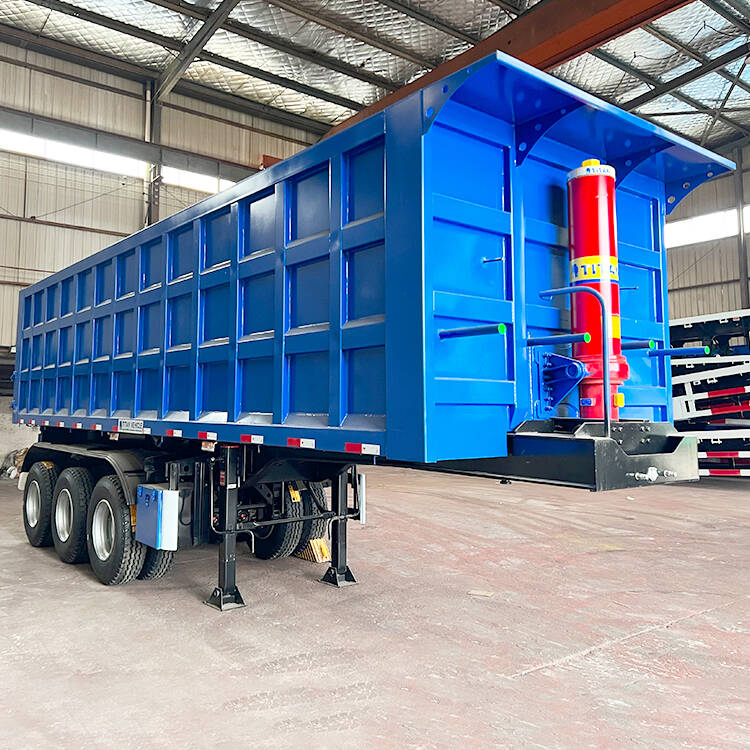

Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA, BPW etc.

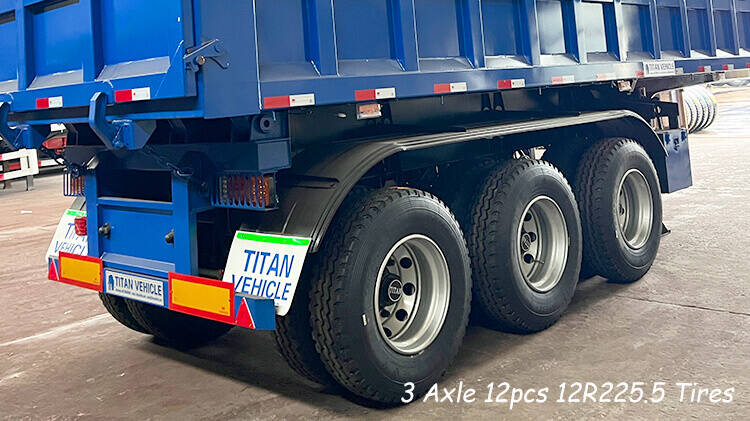

Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5inch
Landing gear: Standard 28ton or JOST
