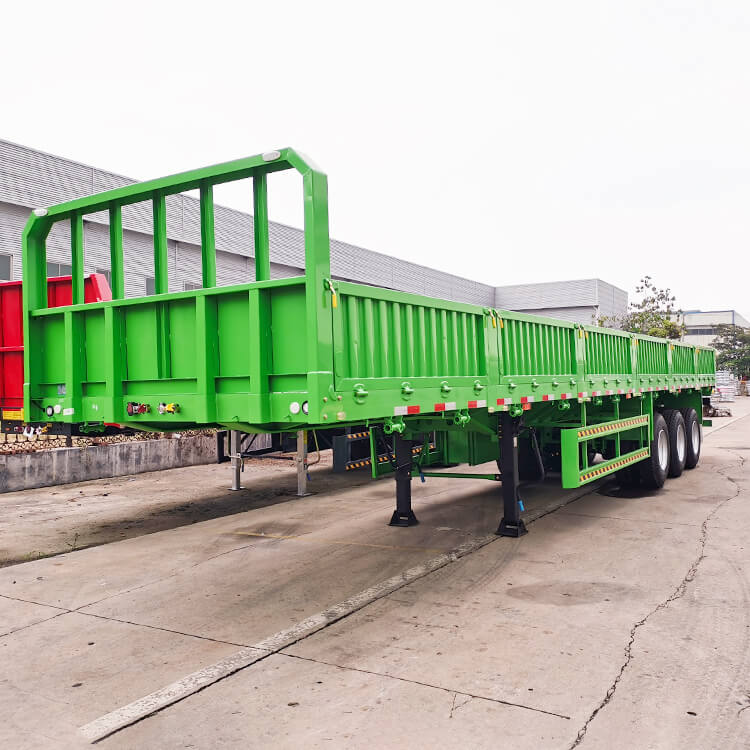

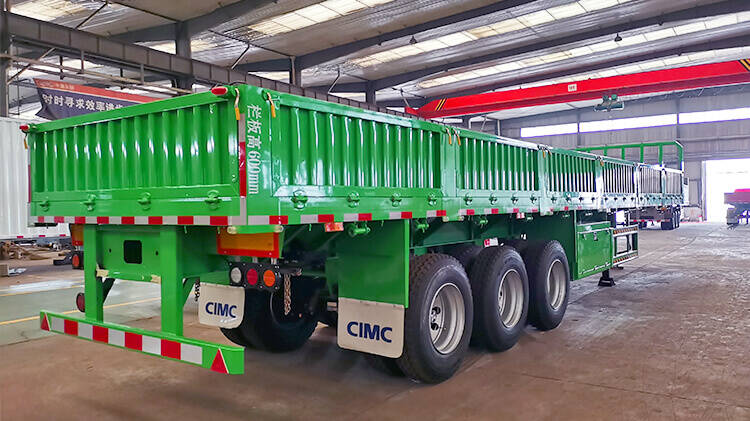

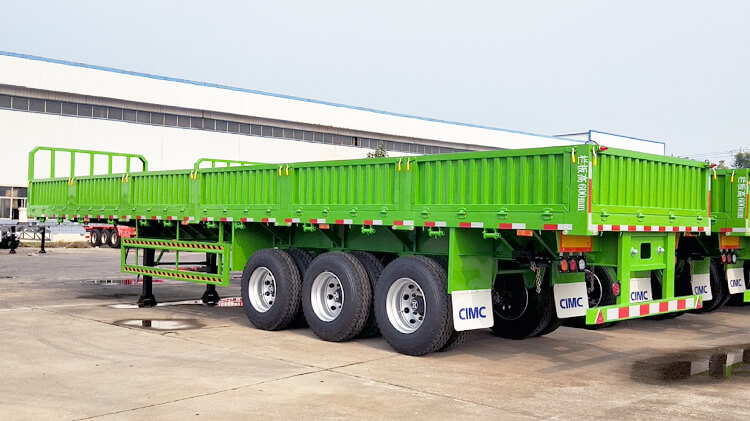

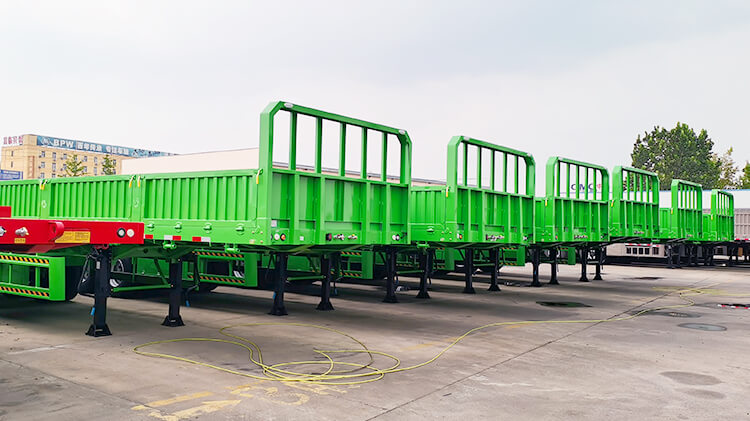

CIMC sideboard trailer is a semi-trailer widely used in the logistics and distribution industry, suitable for transporting various bulk and finished goods, such as building materials, light industrial products, etc. It can load long strips as well as smaller loads such as boxes and bags.
The girder of CIMC sideboard trailer for sale is made of high-strength steel, and multiple diagonal supports are added on both sides of the girder to share more load, thus increasing the total load-bearing capacity of the trailer. Improve the transportation efficiency of the trailer.

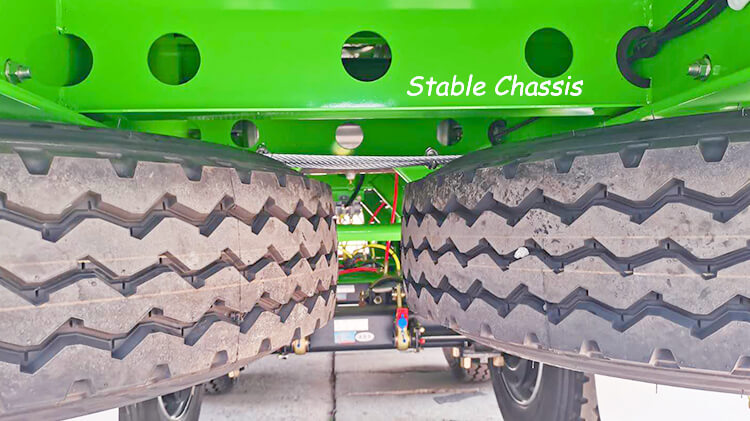

The stable chassis structure of CIMC sideboard trailer in Dominican enables the trailer to adapt to various complex transportation environments, optimize the transportation effect, improve the quality of safe transportation of goods, and improve transportation speed and safety.
The open cargo compartment of CIMC sideboard semi trailer can maximize the use of vehicle space, achieve the best loading effect, and improve the transportation efficiency and benefits of the vehicle.
At the same time, the unloading of this semi trailer is also very convenient. The surrounding fences are equipped with locks, and the fences can be lowered when loading and unloading, which is convenient for loading and unloading, improves loading and unloading efficiency, and reduces time and labor costs.
CIMC sideboard trailer for sale in Dominican adopts lightweight design. By optimizing the vehicle structure and using high-efficiency and energy-saving power systems, the weight and energy consumption of the vehicle are reduced, and the transportation cost and impact on the environment are reduced.
Model: CIMC 3 axle sideboard trailer for sale in Dominican
Dimension(mm): 12500mm*2500mm*2350mm（depends on final design）
Loading capacity(ton): ≤40T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Air suspension optional)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons
Valve: WABCO valve
Voltage: 24V
If you are interested in this CIMC 3 axle sideboard trailer for sale , welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
