Fuel tanker trailer is mainly composed of chassis and tank body.
The chassis is the structural skeleton of the semi-trailer, which is usually welded with high-strength steel. The tank body is the part where oil and other liquids are stored, and the commonly used materials are carbon steel, stainless steel, aluminum alloy, etc.
The tank body is equipped with inlet, outlet and other measuring instruments, which can keep abreast of the internal situation of the Fuel tanker trailer.
Fuel tanker trailer transportation is more flexible and can effectively improve transportation efficiency. In the case of the same tonnage, the transportation cost is reduced and the fuel consumption is saved.
The Fuel tanker trailer tank is made of thick steel, which can withstand the impact of more liquids during transportation.

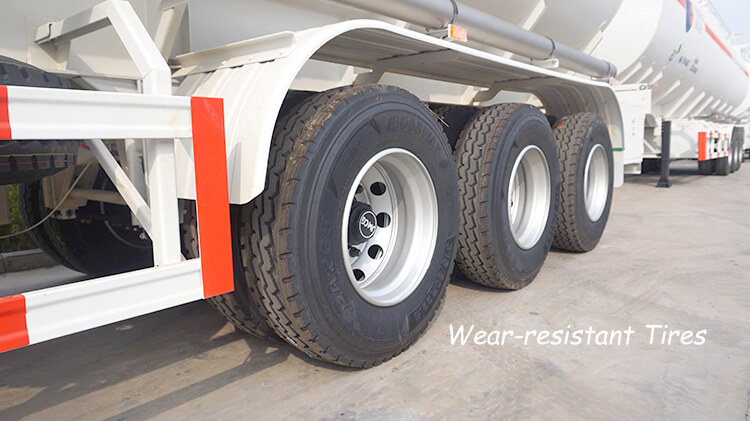

The manufacture and use of Fuel tanker trailer for sale needs to comply with certain standards and specifications, such as choosing tires with stronger grip, equipped with ground iron chains to discharge static electricity, and equipped with a certain number of fire-fighting devices to ensure the safety of cargo transportation.
Fuel tanker trailer in Dominican adopts mechanical suspension, which is more stable during transportation. The size of Leaf Spring is 90mm*13mm, which has a longer service life.

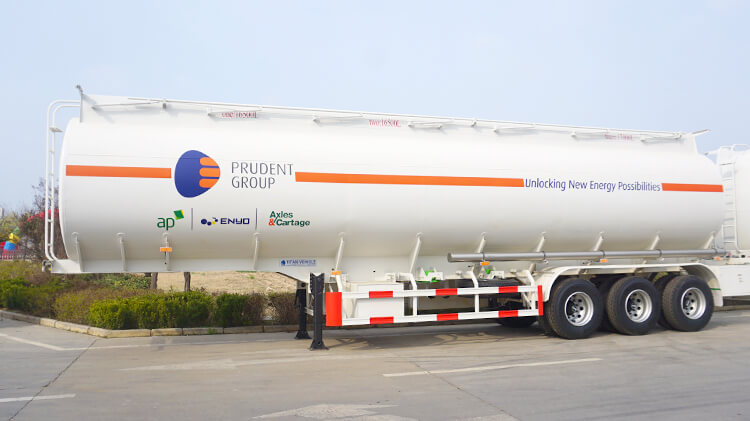

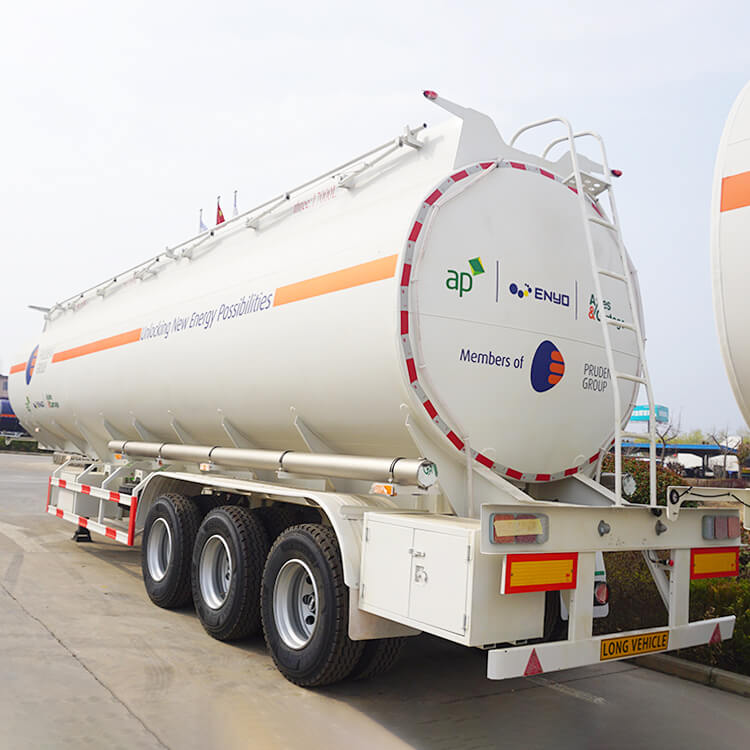

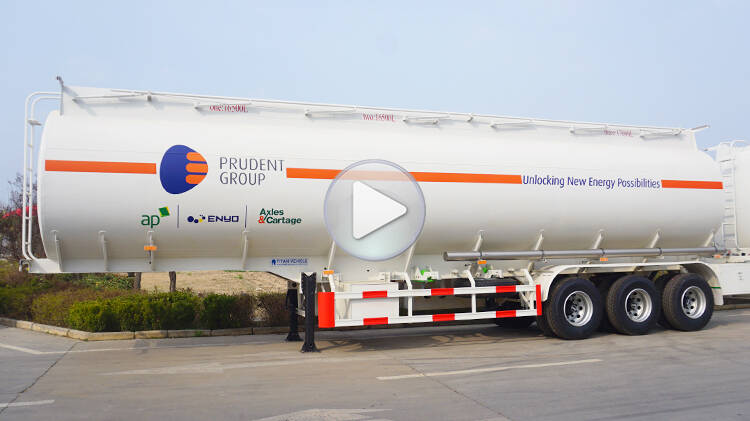

Model: 3 Axle 50000 Liters Fuel Tanker Trailer for Sale in Dominican
Dimension: 11100mm*2500mm*3800mm (depends on the final design.)

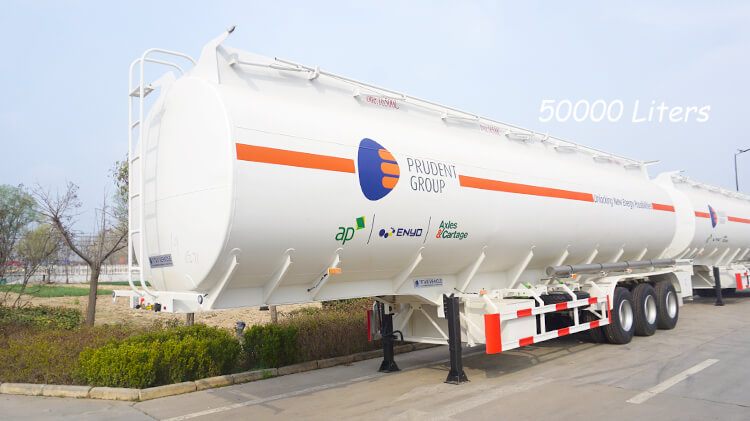

Volume: 50000Liters
Compartment: 3（Optional）
Color: Optional
Tank Body Material: 5mm Stainless steel
End plate: 6mm Stainless steel
Manhole Cover: Stainless steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Axle: 3 axles, 13T
Landing Gear: JOST or China brand 28T
Kingpin: 2.0 or 3.5 inch

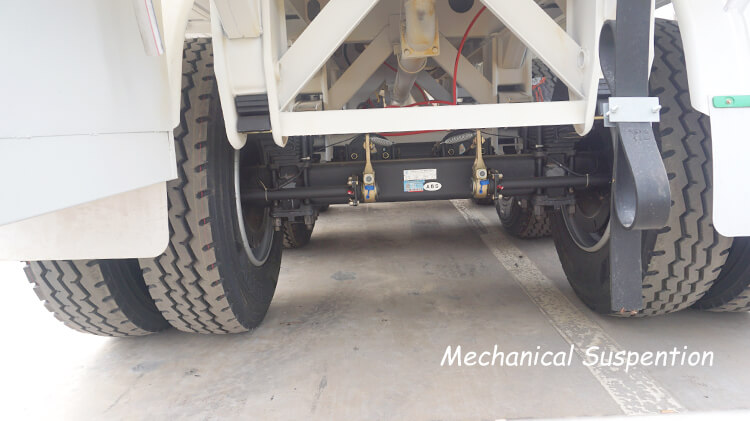

Suspension: Mechanical suspension
Leaf Spring: 90(w)mm*13(thickness)*10 layers
Rim: 9.00-22.5
Tire: 12.00R22.5
