3 Axle sidewall trailer refers to a semi-trailer with a railing structure at the loading part and an open compartment, which is mainly suitable for medium and long-distance transportation of various crops such as grain.
The body of the 3 axle grain trailer is made of high-quality steel. The structure of the vehicle is reasonable, the performance is stable, and the operation is simple and fast. It is the best choice for medium and long-distance cargo transportation.
3 axle grain trailer in Dominican has a strong load capacity, and most models can choose the height of the sidewall according to the transportation needs, which is suitable for the transportation of goods of different heights.

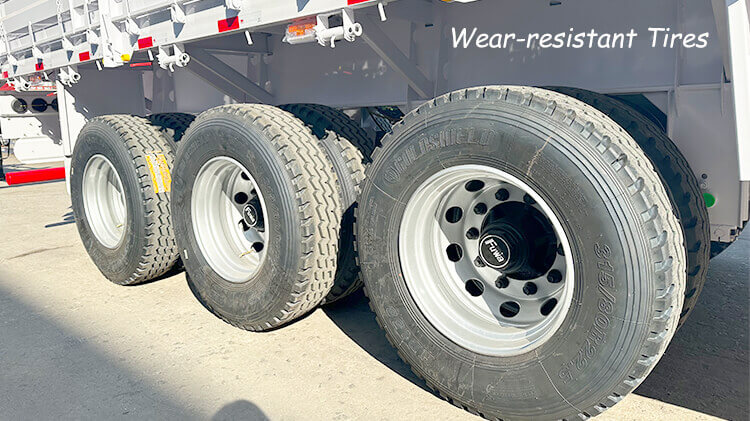

3 axle grain trailer from Titan uses strong wear-resistant tires with strong grip, which can easily cope with a variety of complex road conditions while ensuring stability and safety during driving.

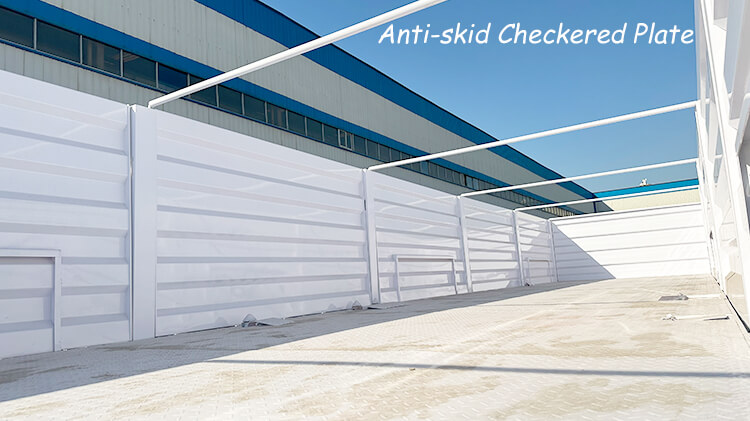

3 The interior of the axle grain trailer for sale is made of anti-skid and wear-resistant thickened high-strength steel plates to improve the service life of the carriage. In addition, multiple railings can be installed in the compartment, which can easily separate the goods and ensure the safety and tidiness of each goods. Have good flexibility.
3 axle sidewall trailer for sale has high transportation efficiency and can unload goods quickly. When unloading, the corresponding fence can be opened, and the goods that need to be unloaded can be unloaded directly to the designated location, which saves transportation time and greatly improves the efficiency of cargo transportation.
Model: 3 axle side wall grain trailer for sale in Dominican
Dimension(mm): 12500mm*2500mm*2750mm(depends on final design)
Trailer Sides: 1200mm, or box type sides
Loading capacity(ton): ≤50T
Axles: 3 axles, 13T/16T
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension (Air suspension optional)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand or Standard 28tons
Valve: WABCO valve

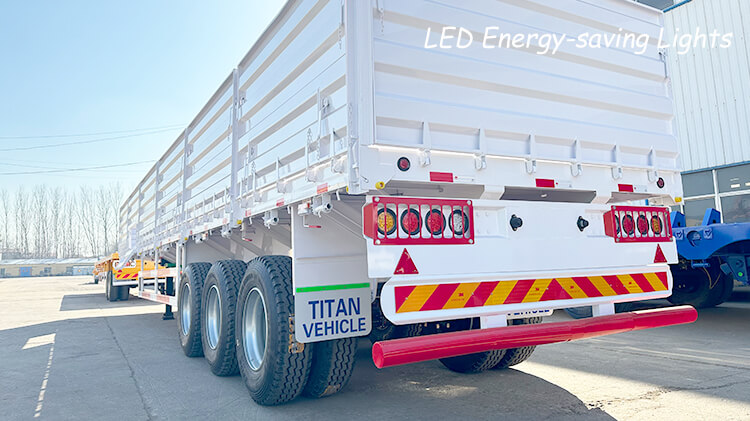

Light: LED light
Voltage: 24V
If you are interested in this 3 axle 60ton sidewall grain trailer for sale, welcome to leave your message!
We will provide more details, quotation, catalog, drawing, videos for you!
